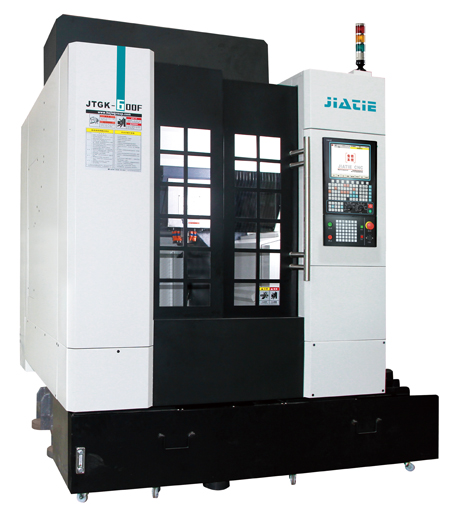

JTGK-600F High Speed Engraving and Milling CNC Machine

Download

FeaturesParameters

Features

- User-friendly, easy to operate and manage

- ATC with larger tool capacity, multitasking

- Particularly suitable for batch parts machining

Machinable Materials

Aluminum alloy, magnesium alloy

Application Fields

Equipment manufacturing, parts, mold, shiny chamfering on the shell of consumer electronics, etc

Standard Configuration

- High speed CNC controller

- High speed spindle

- AC servo motor

- Precision ball screw and guide rail

- Tool setting sensor

- Hand Wheel

- Spindle cooling system

Optional Devices

- Automatic tool changer

- 4^th axis

- Voltage stabilizer

- Oil mist collector

- Probe

Item	Parameter
Working area X/Y/Z	600/500/300mm
Work table size	630 x 500mm
Table Load	300kg
Spindle power Max spindle speed	4.0kw/32000rpm or 5.5kw/30000rpm or 6.0kw/32000rpm
Rapid traverse rate	18m/min
Cutting feed rate	12m/min
Positioning accuracy	0.008mm
Repeatability	0.004mm
Weight	4000kg
Machine dimension	1900 x 1640 x 2490mm
Power Supply	3PH-AC 380V ±5% 50Hz
