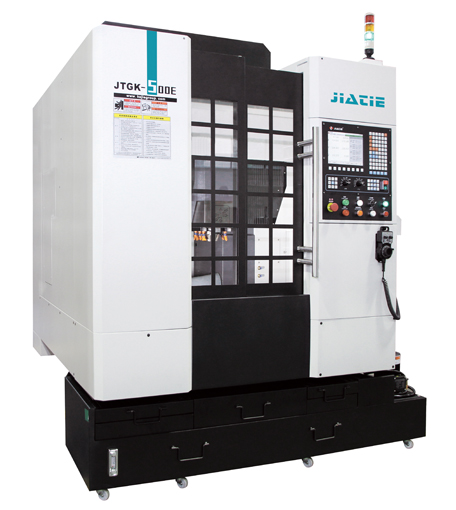

JTGK-500E High Speed Engraving and Milling CNC Machine

Download

FeaturesParameters

Features

- Compact machine design with small footprint

- Patent servo tool magazine(utility model patent no.:ZL201920547361.6)(optional)to meet the needs of batch production.

- Favorable man-machine interaction, user-friendly

For Material

Carbon steel, alloy steel, copper, aluminum alloy, plastic, sapphire, glass

Applied Range

The machining of mold, electrode, hardware, artware, 3C product, machine parts

Standard Accessories

- High speed CNC controller

- High speed spindle

- AC servo motor

- Precision ball screw and guide rail

- Tool setting sensor

- Hand Wheel

- Spindle cooling system

Optional Accessories

- Automatic tool changer

- 4^th axis

- Voltage stabilizer

- Oil mist collector

- Probe

Item	Parameter
Working area X/Y/Z	500/400/230mm
Work table size	500 x 400mm
Max load of table	150kg
Spindle power Max spindle speed	4.0kw/30000rpm or 4.0kw/32000rpm
Cutting feed rate	15m/min
Positioning accuracy	12m/min
Positioning Accuracy	0.008mm
Repeatability	0.004mm
Weight	3000kg
Machine dimension	1750 x 1550 x 2200mm
Power Supply	3PH-AC 380V ±5% 50Hz
