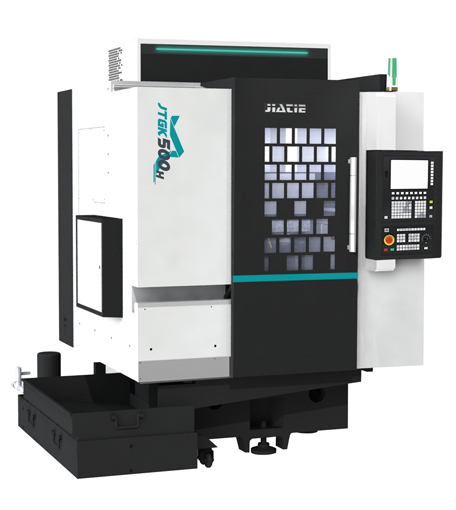

JTGK-500H High Speed Engraving and Milling CNC Machine

Download

FeaturesParameters

Features

- New generation CNC controller

- High efficiency and high precision machining

- Excellent metal machining performance

- Good vibration suppression performance

- Auto-wash function, easier machine cleaning

- Favorable man-machine interface, easy operation

For Material

Aluminum alloy, copper

Applied Range

Mold, electrode, parts, etc

Standard Accessories

- High speed CNC controller

- Precision ball screw and guide rail

- AC servo motor

- High speed motorized spindle

- Automatic tool magazine

- Spindle cooling system

- Lubrication system

- Tool setting sensor

Optional Accessories

- Oil mist collector

- 4^th axis rotary table

- Voltage stabilizer

- Probe

Item	Parameter
Working area X/Y/Z	500/400/200mm
Work table size	500 x 400mm
Max load of table	150kg
Spindle power Max spindle speed	6.0kw/32000rpm
Rapid traverse rate	15m/min
Cutting feed rate	10m/min
Positioning accuracy	0.008mm
Repeatability	0.004mm
Weight	4000kg
Machine dimension	2010×1850×2300mm
Power Supply	3PH-AC 380V ±5% 50Hz
