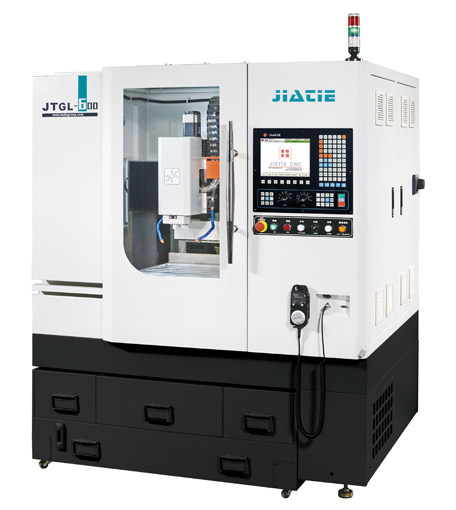

JTGL-600 Glass CNC Machining Center
FeaturesParameters
Features
- Full protective hood, all-in-one structure
- Natural granite machine bed, excellent material characteristics, precision retainability and vibration absorption
- CCD visual positioning system (optional)
For Material
Glass, non-metal oxide microchip
Applied Range
Screen glass of consumer electronics
Standard Accessories
- High speed CNC controller
- High speed spindle
- AC servo motor
- Precision ball screw and guide rail
- Tool setting sensor
- Hand Wheel
- Spindle cooling system
Optional Accessories
- Automatic tool changer
- CCD positioning system
- Voltage stabilizer
- Oil mist collector
- Probe
Item | Parameter |
Working area X/Y/Z | 600/400/120mm |
Work table size | 600×400 mm |
Max load of table | 100kg |
Spindle power Max spindle speed | 1.2kw/60000rpm or 2.5kw/40000rpm |
Rapid traverse rate | 10m/min |
Cutting feed rate | 10m/min |
Positioning accuracy | 0.008mm |
Repeatability | 0.005mm |
Weight | 2500kg |
Machine dimension | 1300×1500×1600 mm |
Power Supply | 3PH-AC 380V ±5% 50Hz |
